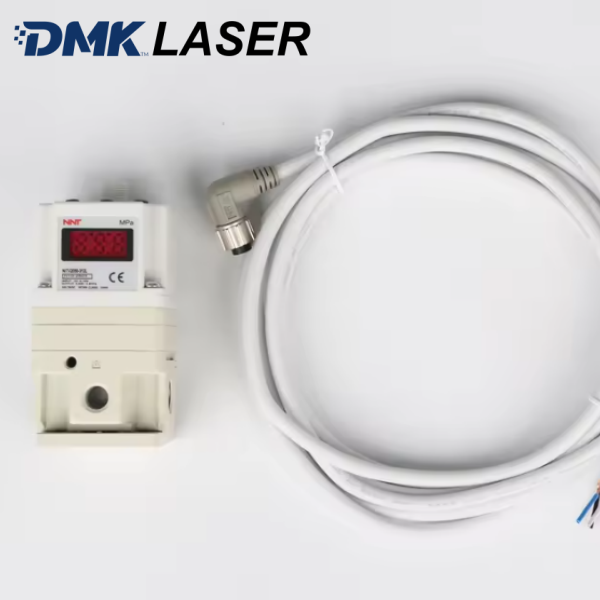

SMC 섬유 레이저 절단 기계 용 고압 비례 밸브 (모델 ITVX2030-312L/313L)

Product Features

• Dual Models for Low & High Pressure Needs: Offers ITVX2030-312L (low-pressure version) and ITVX2030-313L (high-pressure version), covering different pressure requirements of laser cutting. Compatible with 3000W and other power equipment, ensuring strong adaptability.
• Precise Continuous Pressure Control: Air pressure is proportional to electrical signals, with a set pressure range of 0.01-3.0MPa and a maximum supply pressure of 5.0MPa. It enables refined pressure adjustment, guaranteeing the quality of cutting edges.
• Multi-Medium Compatibility + High Flow Rate: Suitable for various cutting media including air, nitrogen, oxygen, and argon. The maximum flow rate reaches 3000L/min (ANR, under 5.0MPa supply pressure and 3.0MPa set pressure), meeting the air supply needs of high-efficiency cutting.
• Easy Operation + Visual Monitoring: Adopts threaded connection for quick and convenient installation; equipped with a digital pressure display to real-time monitor working status, featuring low operational threshold for easy mastery even by novices.
• High-Quality Material + Compliance Certification: Fluorine-based grease is used in fluid-contacting parts for corrosion resistance and durability; certified by CE and RoHS, the product is brand-new ex-factory with reliable quality.

Product Parameter Table

Product Application Fields

• Air supply control for 1064nm wavelength fiber laser cutting machines
• Supporting 3000W power laser cutting equipment
• Multi-medium pressure adjustment for metal laser cutting
• Maintenance and replacement of cutting equipment in laser processing workshops

Product FAQ

1. Which wavelength of laser equipment is this proportional valve compatible with?



   Answer: Specifically designed for fiber laser cutting machines with 1064nm wavelength, accurately matching the air supply control needs of this type of equipment.

2. What is the core difference between the low-pressure and high-pressure versions?



   Answer: They mainly adapt to different pressure scenarios. ITVX2030-312L is the low-pressure version, and ITVX2030-313L is the high-pressure version. Both cover the set pressure range of 0.01-3.0MPa, and can be selected according to the actual pressure requirements of the equipment.

3. Which cutting media does it support?



   Answer: It supports various commonly used laser cutting media such as air, nitrogen, oxygen, and argon, eliminating the need for frequent valve replacement and adapting to multi-process cutting.

4. What is the installation method? Is the operation complicated?



   Answer: It adopts threaded connection for simple and quick installation; equipped with a digital pressure display for real-time pressure monitoring, featuring low operation difficulty and easy mastery.
